USB-C Hub Converter with 4K HDMI, Gigabit Ethernet, USB 3.0 Ports, and 87W PD Charging

Modern ultrabooks and tablets prioritise slim designs, often at the cost of connectivity, leaving you with just one or two USB-C ports. This multi-functional hub directly addresses that limitation, transforming a single USB-C connection into a comprehensive docking station. It delivers high-definition video output, rapid file transfer via multiple USB 3.0 ports, a reliable Gigabit Ethernet connection for stable networking, and dedicated slots for memory cards, all while supporting pass-through charging for your host device. With its compact deep grey aluminium alloy body measuring 101.4mm by 43mm by 15mm, it's a portable solution for creating an efficient workspace anywhere.

Core Specifications and Technology

This hub is built around precise technical specifications and a combination of specialised controller chips to manage its various functions efficiently and reliably.

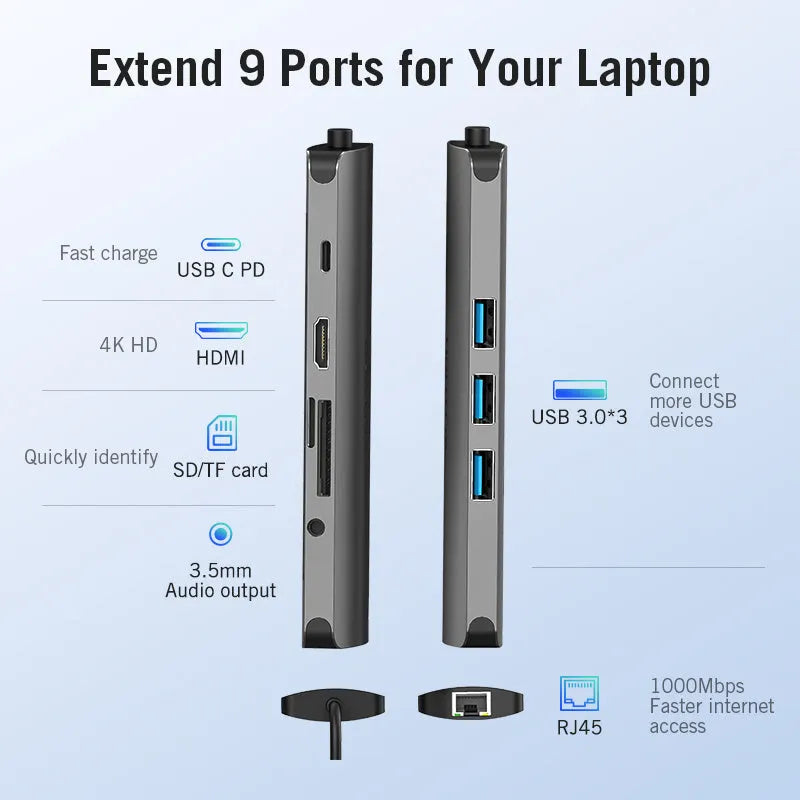

Video and Data Interfaces

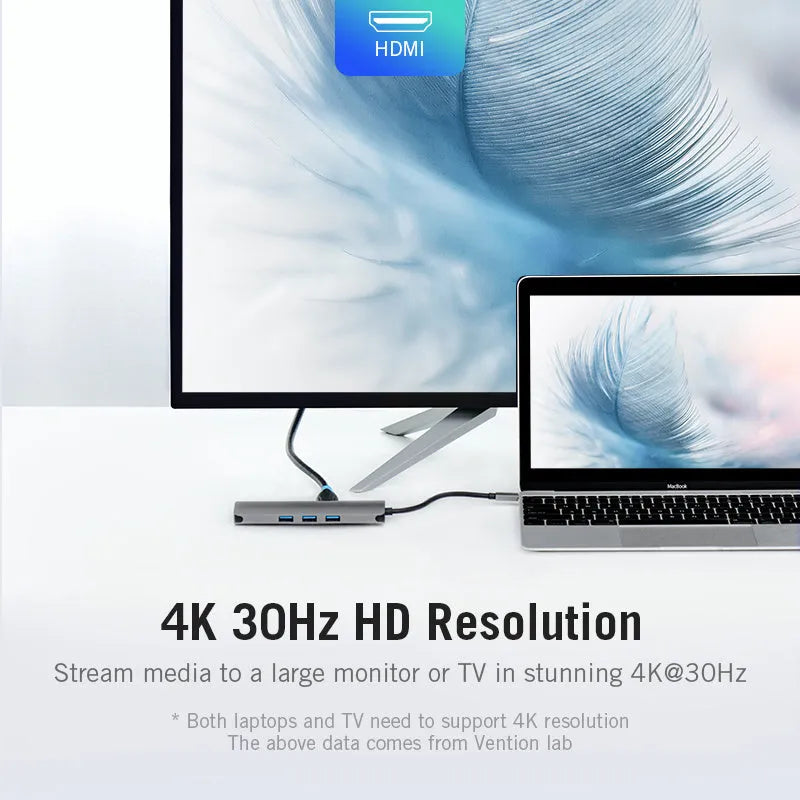

The hub features an HDMI 1.4 port capable of outputting video at 4K Ultra HD resolution with a 30Hz refresh rate, suitable for presentations, media playback, or extending your desktop to a larger monitor. For data, it provides three independent USB 3.0 ports, allowing you to connect peripherals like external hard drives, keyboards, and mice simultaneously at high speed. The dedicated Gigabit Ethernet port (RJ45) offers a fast and stable wired internet connection, which is crucial for video calls, large downloads, or online gaming where Wi-Fi may be inconsistent.

Power and Expansion

A key feature is the Power Delivery (PD) pass-through charging port, which supports up to 87W. This allows you to plug your laptop's original charger into the hub, which then powers both the hub itself and your connected laptop through a single cable, reducing desk clutter. For direct media access, the hub includes separate card reader slots for both TF (MicroSD) and SD memory cards, enabling quick file transfers from cameras, drones, or other devices without needing a separate adapter.

Internal Components and Build

The hub's functionality is driven by a set of integrated circuits: the LT8711HE for video conversion, the VL817 for USB 3.0 hub control, the RTL8153B for Gigabit Ethernet, and the GL823 for card reader operations. Signal integrity is maintained by the 0.15m cable, which uses 30AWG and 24AWG tinned copper conductors shielded with aluminium foil, all encased in a durable 4.5mm thick TPE outer jacket. The ports themselves are finished with nickel plating for durability.

Design and Physical Construction

The hub's design prioritises durability, effective heat dissipation, and a professional aesthetic suitable for both office and mobile use.

Shell and Material Choice

The main body of the hub is constructed from a combination of aluminium alloy and ABS plastic. The aluminium aids in dissipating heat generated by the internal chips during operation, helping to maintain consistent performance. The ABS components add structural rigidity and help keep the overall unit lightweight. The finish is a uniform deep grey, giving it a neutral and professional look that blends with most tech accessories.

Cable and Port Durability

The attached 0.15m cable is designed for flexibility and daily use. The TPE (Thermoplastic Elastomer) outer cover is resistant to twisting and abrasion. Internally, the aluminium foil shield helps protect the tinned copper signal wires from electromagnetic interference, which is important for maintaining the integrity of high-speed USB 3.0 and video data streams over even this short distance.

Form Factor and Portability

With dimensions of 101.4mm in length, 43mm in width, and 15mm in height, the hub has a slim, bar-shaped profile. This compact size makes it easy to slip into a laptop bag or backpack alongside your computer, ensuring you have expanded connectivity available whether you're at your desk, in a meeting room, or working from a café.

Practical Applications and Use Cases

This converter hub is designed to integrate seamlessly into various professional, educational, and personal computing environments, solving specific connectivity challenges.

Professional and Home Office Setup

For professionals with modern laptops, this hub enables a clean and organised desk setup. Connect a single USB-C cable from the hub to your laptop to instantly gain access to an external monitor via HDMI, a wired network for VPN or large file transfers, multiple USB devices, and keep your laptop charged simultaneously. It effectively replaces a bulkier docking station for many users.

Content Creation and Media Management

Photographers and videographers can benefit from the direct SD and TF card readers for offloading footage quickly onto their laptop for editing. The USB 3.0 ports provide the bandwidth needed for fast external SSDs or card readers for even quicker transfers, while the 4K HDMI output allows for previewing edits on a calibrated external screen.

Travel and Mobile Productivity

The hub's portability makes it an ideal travel companion. In a hotel room, you can connect to a TV for entertainment, use the Ethernet port if the Wi-Fi is poor, and charge your devices. Students can use it in libraries or lecture halls to connect peripherals to a tablet or lightweight laptop, creating a more functional mobile workstation without carrying multiple single-purpose adapters.
