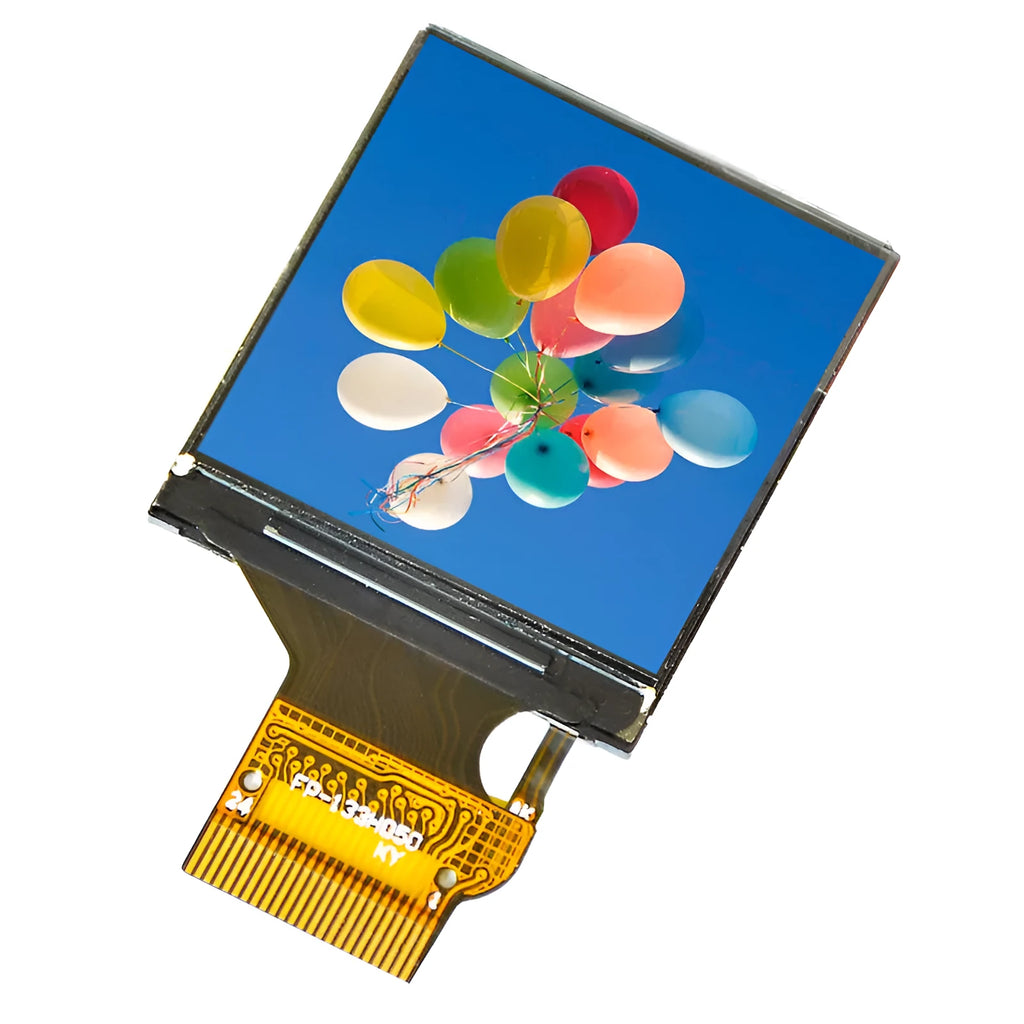

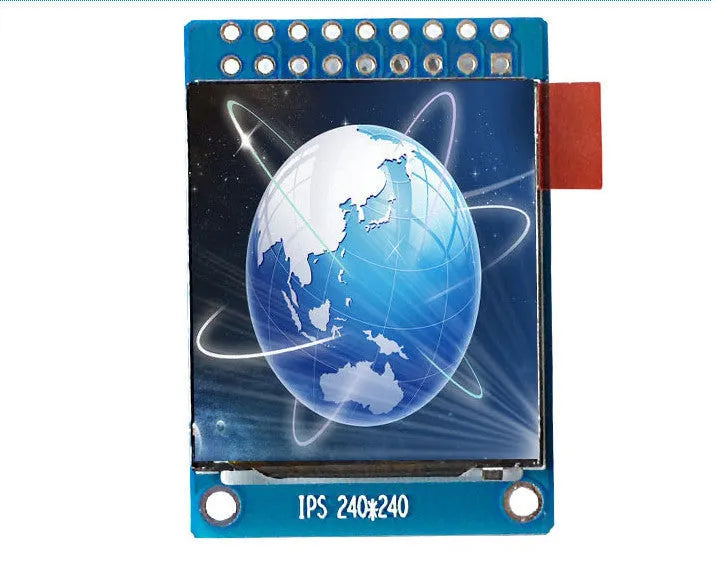

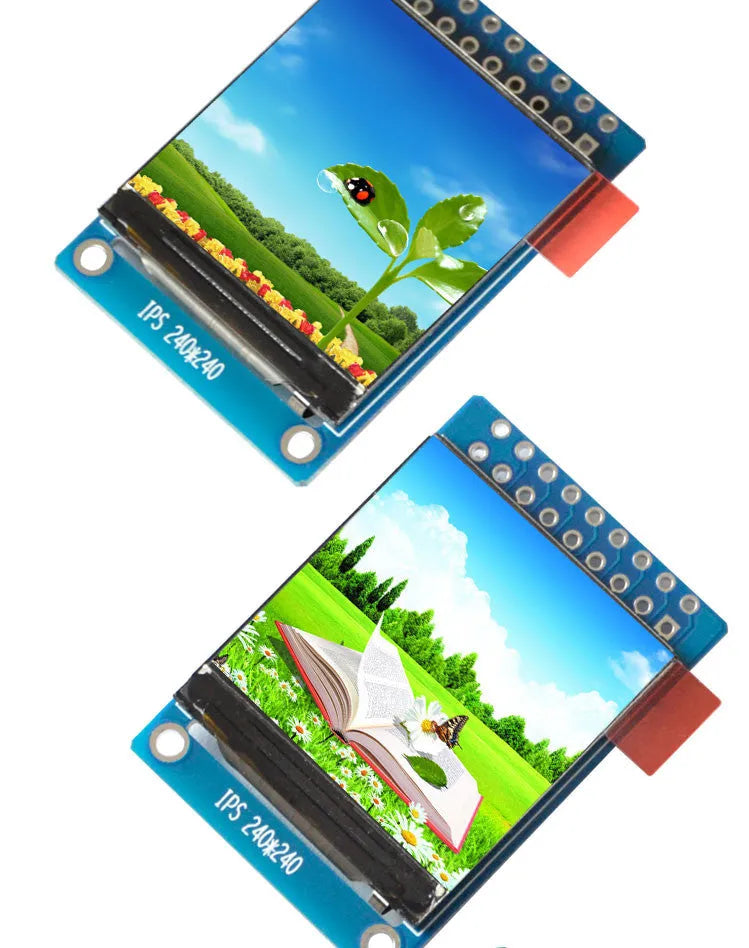

1.3 Inch IPS LCD Full Colour Display Plug-in for DIY Electronics and Microcontroller Projects

This 1.3-inch IPS LCD display plug-in module is engineered for hobbyists, makers, and developers seeking a compact, high-quality visual output for their electronics projects. With its 240x240 pixel resolution and square format, it delivers crisp, full-colour graphics and text, ideal for creating custom instrument panels, status monitors, or embedded system interfaces. The screen utilises an IPS (In-Plane Switching) panel, which offers superior colour vibrancy and wider, distortion-free viewing angles compared to traditional TFT LCDs. Its flexible dual-interface design, driven by the common ST7789 controller chip, makes it a versatile choice for integration with popular platforms like Arduino, Raspberry Pi, and other microcontrollers, providing a professional finish to DIY builds without a bulky footprint.

Features and Construction

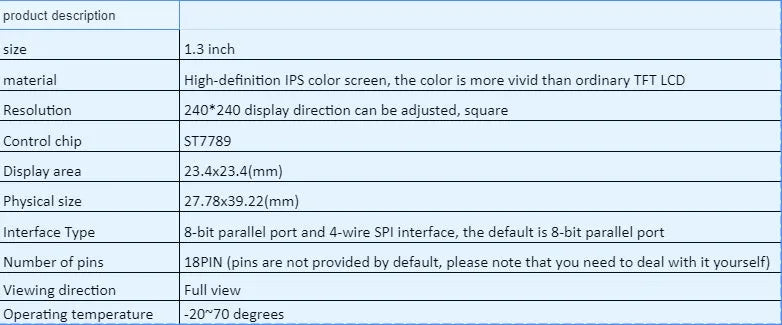

This display module is defined by its precise specifications and build, tailored for reliable performance in custom applications. Its construction centres on delivering a clear visual interface within a minimal physical envelope, supported by a standard industrial driver chip.

Material and Build

The core visual component is a high-definition IPS colour screen. This technology is noted for producing more vivid colours and maintaining consistent image quality across a full 180-degree viewing angle, unlike standard TFT screens which can suffer from colour shift. The module is built around the ST7789 display driver chip, a widely supported controller that manages the pixel data. The electrical interface is provided through a set of 18 surface-mount pads, designed to accept a standard pin header for connection to your main board. The module itself is a solid-state assembly with no moving parts.

Size and Practical Fit

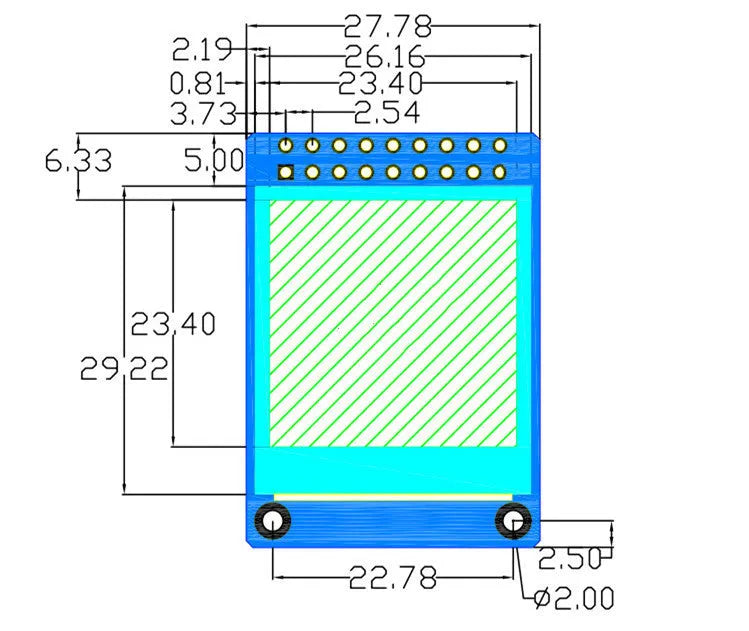

The module's compact design is quantified by two key measurements. The active area where images are displayed is 23.4 mm by 23.4 mm, providing a perfectly square viewing space. The entire module's physical size measures 27.78 mm in width by 39.22 mm in height, which includes the border and the PCB that houses the driver and connectors. This makes it suitable for projects where panel space is at a premium, such as handheld devices, wearable tech, or compact control units. The square shape also simplifies layout planning compared to rectangular screens.

Uses and Placement

This display's technical profile opens it up to a range of practical applications, from professional prototyping to home hobbyist projects. Its interface options and robust operating temperature range support both experimental and more permanent installations.

Event or Professional Use

In professional or commercial prototyping environments, this display can serve as a cost-effective human-machine interface (HMI) for proof-of-concept devices, test equipment readouts, or low-volume specialised instruments. Its ability to operate across a temperature range of -20 to 70 degrees Celsius supports use in non-climate-controlled settings like workshops, garages, or outdoor monitoring stations. The availability of both SPI and parallel interfaces allows engineers to select the mode that best fits their system's available GPIO pins and required data throughput.

Everyday Home Use

For the home maker or electronics enthusiast, this module is perfectly suited for a vast array of DIY projects. It can become the face of a custom smart home controller, a retro gaming console, a weather station display, or a sensor data monitor for a 3D printer. The SPI interface, in particular, is easy to use with common development boards like the Raspberry Pi Pico or Arduino Nano, requiring only a few wires. The adjustable display direction feature means the image can be rotated to match the physical orientation of your project enclosure, enhancing usability.

Benefits and Buying Value

The value of this display module lies in its specification-led practicality and the flexibility it offers to the user. It provides a known, reliable component that removes guesswork from the screen-sourcing part of a project.

Reuse and Low Maintenance

As a solid-state electronic component with no consumable parts, the display is designed for long-term use. Once integrated into a project, it requires no maintenance. Its durability is supported by its specified operating temperature range, suggesting stable performance under normal conditions. The module can be desoldered and reused in future projects if needed, and the common ST7789 driver chip is well-documented online, with extensive code libraries and community support available to help troubleshoot or adapt its use over time.

Why Choose This Product

Choosing this specific display plug-in brings several concrete advantages. First is the image quality from the IPS panel, which offers better colour and viewing angles than basic TFTs for a more pleasing user experience. Second is the dual-interface support, giving you the freedom to choose the simplest connection method for your specific microcontroller. Third is the complete transparency of its specifications—you know the exact pixel resolution, physical dimensions, and driver chip, allowing for precise planning and integration. This combination of a quality screen, connection flexibility, and clear technical data makes it a pragmatic and reliable choice for bringing your electronic creations to life.
