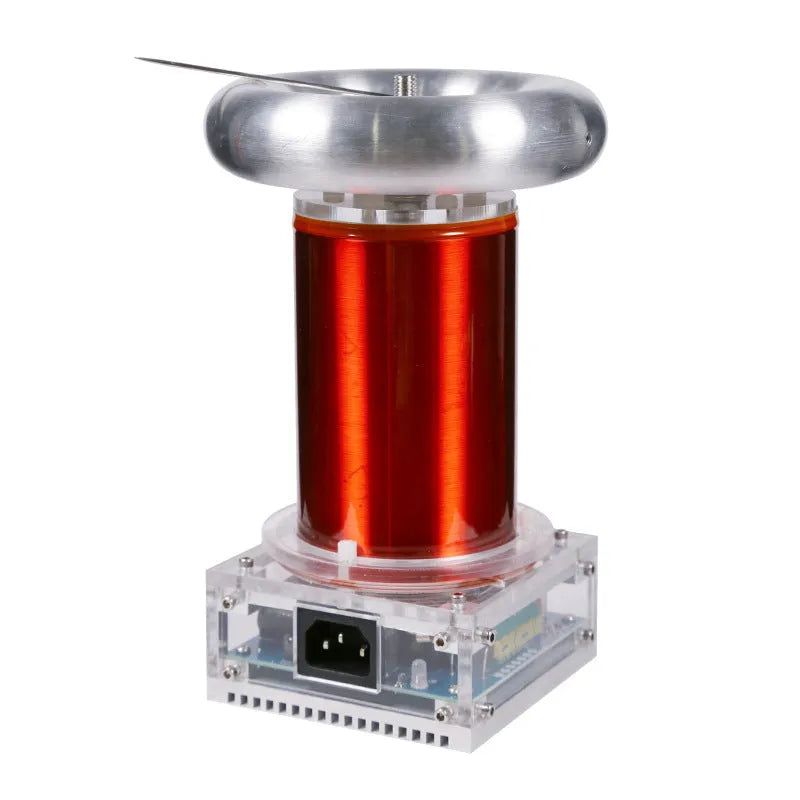

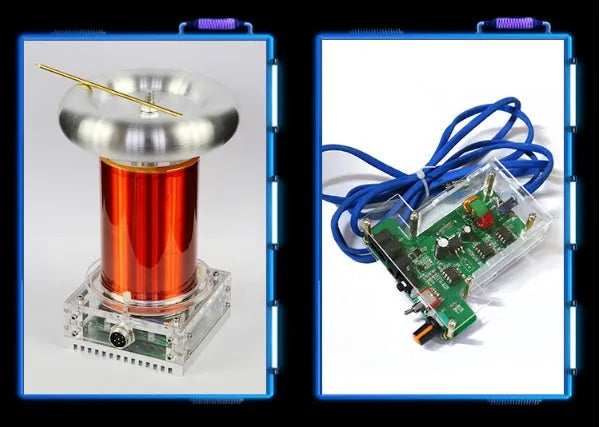

Music Tesla Coil Driver Board: Create 20-Metre Musical Lightning Arcs from 220V Power

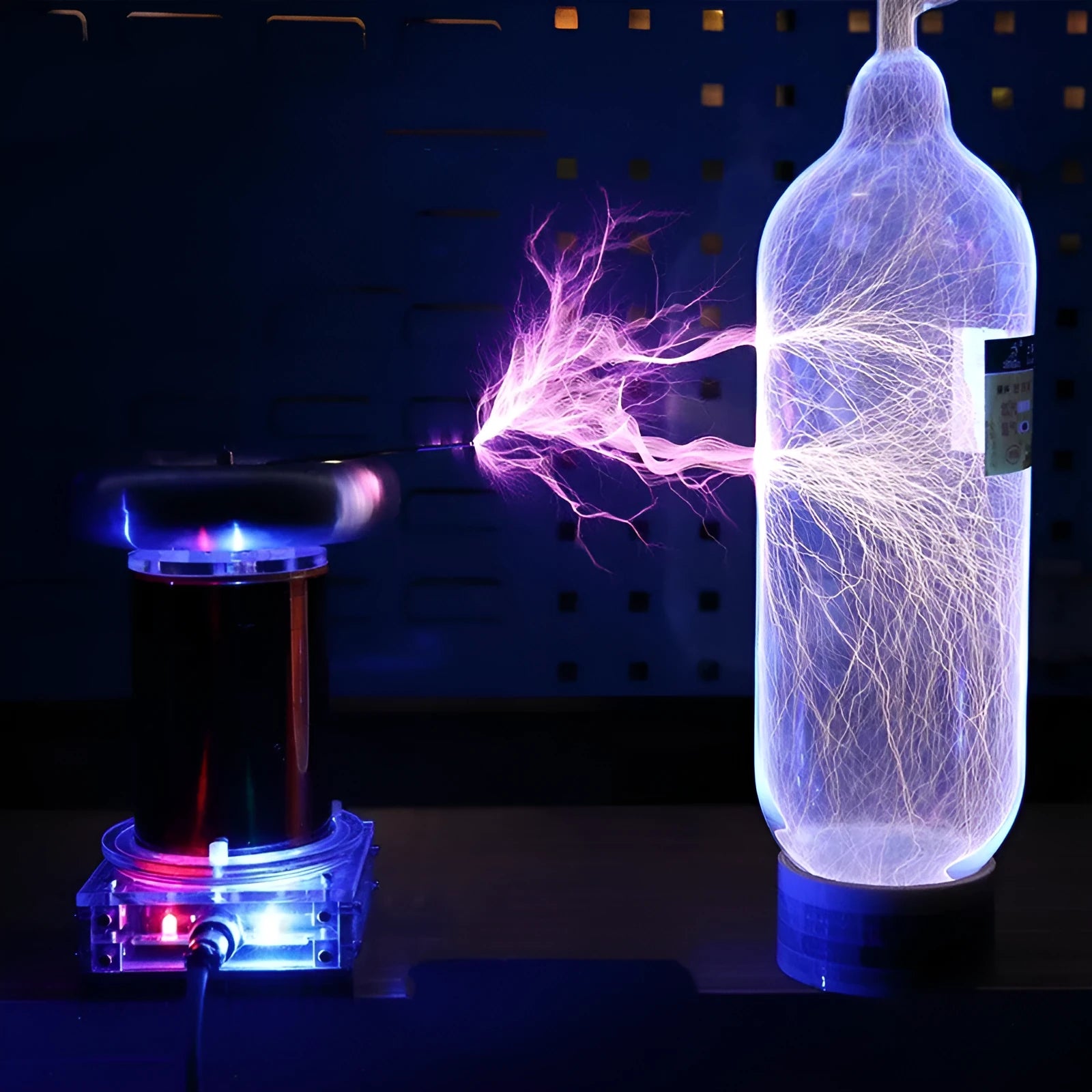

This specialised driver board transforms electrical energy into dramatic, controllable lightning arcs that can reach distances of up to 20 metres, all synchronised to an audio input. Designed for use with SSTC (Solid State Tesla Coil) configurations, it eliminates the complexity often associated with high-voltage projects by operating directly from a standard 220V AC mains socket without requiring a separate ground wire installation. The integrated controller provides precise adjustment over the arc's length and visual intensity, making it a practical tool for educational demonstrations, science exhibits, or distinctive visual displays. With a robust yet portable form factor and built-in safety features, it offers a more accessible entry point into high-voltage experimentation.

Features and Construction

The board's design prioritises both performance and user safety, integrating key technical solutions into a single, manageable unit. Its construction supports the high-power requirements needed for sustained arc generation while incorporating measures to contain and control the electrical discharge.

Material and Build

The driver board and its accompanying controller are housed within enclosures made from materials selected for electrical insulation and durability. The internal circuitry is built around components rated for the unit's 250W average power and 200VA capacity. A central feature is the drive arc extinguishing isolation device, which helps safely manage the cessation of the high-voltage discharge. Signal integrity is maintained through coaxial cable transmission, reducing interference and ensuring reliable audio synchronisation. The overall build is described as strong and compact, contributing to the product's portability for use in different locations.

Size and Practical Fit

With external dimensions of 100 mm in width, 115 mm in depth, and 205 mm in height, the main driver unit has a footprint comparable to a small bookshelf speaker. Its 1 kg weight makes it relatively easy to transport and position for a setup. This compact size means it can be integrated into a demonstration station or portable case without demanding excessive space. The physical scale is a practical balance, providing enough internal volume for the necessary electronics and heat dissipation while remaining a manageable component within a larger Tesla coil system.

Uses and Placement

This driver board enables the creation of visually striking electrical displays that are tied to sound, opening up several application avenues. Correct placement and setup are crucial for both optimal performance and safety during these uses.

Event or Professional Use

For stage productions, museum exhibits, or science festivals, this unit can serve as the core of a captivating musical lightning display. The ability to produce arcs up to 20 metres long allows for creating impressive visual centrepieces. The synchronisation with audio via the 3.5mm port means the lightning effects can pulse in time with music, adding a dynamic element to performances. Professionals will appreciate the direct 220V power operation, which simplifies venue logistics compared to systems requiring specialised electrical setups or ground rods. The provided controller allows for real-time adjustment of the effect's intensity to suit the event's atmosphere.

Everyday Home Use

For enthusiasts, hobbyists, or educators working in a home workshop or classroom, the driver board offers a contained and relatively safe method for high-voltage experimentation. Its 'set meter without ground wire' feature is particularly valuable in environments where installing a permanent ground is impractical. The unit can be used for demonstrating principles of electromagnetism, resonance, and plasma discharge. It is important to adhere strictly to the safety guidelines, maintaining the recommended 1-metre viewing distance and limiting operational sessions to the advised 3-5 minutes to ensure the equipment operates within safe thermal limits and manages user exposure.

Benefits and Buying Value

The value of this product lies in its integration of capability, convenience, and controlled risk, packaged for users who need reliable high-voltage arc generation without extreme technical overhead.

Reuse and Low Maintenance

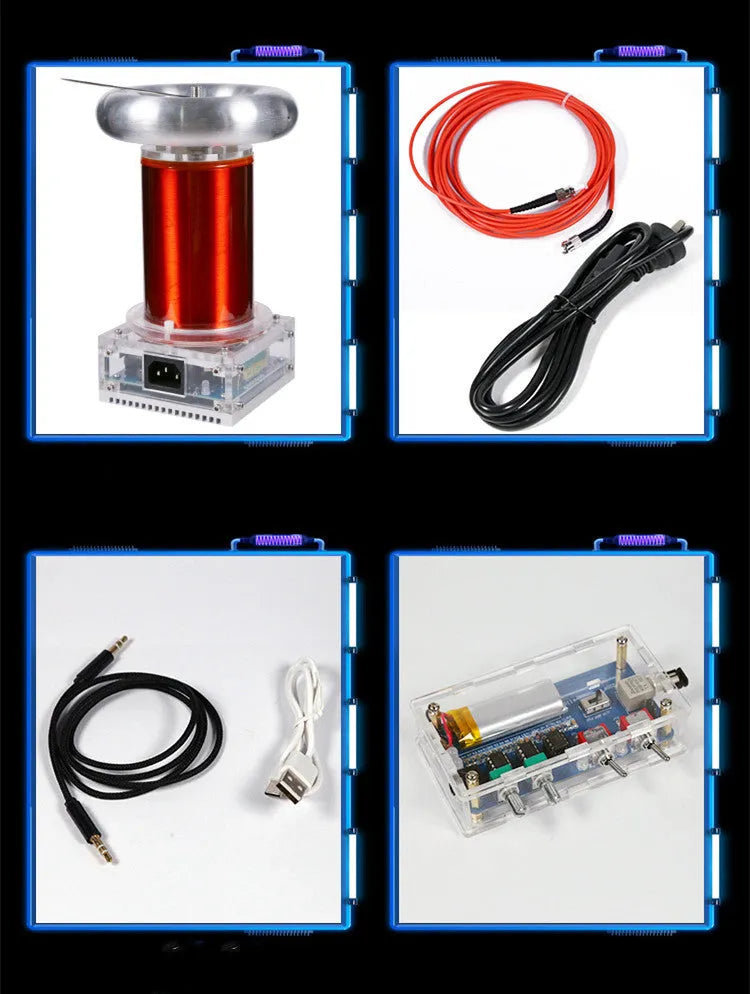

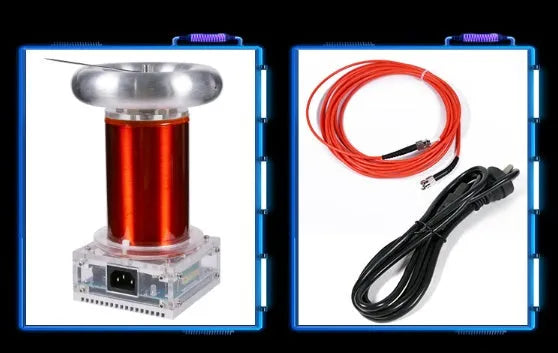

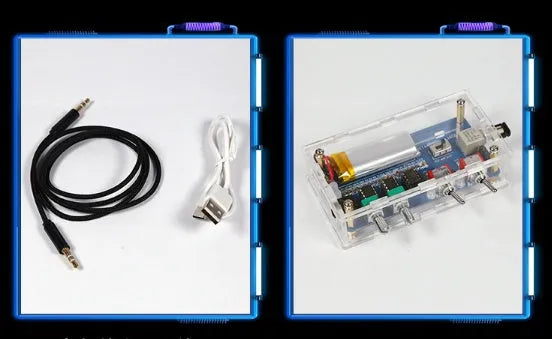

The driver board is designed for repeated use across multiple demonstrations or projects. Its construction is noted for being robust, suggesting it can withstand the demands of regular operation. Maintenance is primarily centred on safe operating practices: ensuring connections are secure, keeping the unit clean and dust-free, and following the prescribed usage durations to prevent overheating. The inclusion of key cables (power, audio, USB, fibre optic) in the package means you have all necessary connectors from the outset, supporting immediate and future use without needing to source compatible parts separately.

Why Choose This Product

Choosing this driver board is justified by its specific combination of high output (20m arcs), user-oriented features, and integrated safety. The direct 220V power operation removes a significant technical barrier to entry. The arc extinguishing device and the clear safety protocols provide a framework for responsible use. For anyone requiring a proven, self-contained driver for musical Tesla coil effects, this unit offers a verified specification—250W power, 200VA capacity, defined dimensions—and a complete accessory kit, reducing uncertainty and setup time compared to sourcing and assembling individual components.
