Generation 3 Mobile Phone Diagnostic Instrument for Professional Telecom Maintenance

Telecommunication maintenance technicians require reliable, rapid tools to diagnose faults efficiently on-site. This third-generation mobile phone mainboard diagnostic instrument is engineered for this specific professional application, offering a compact and portable testing solution. With dimensions of just 48mm by 48mm by 154mm and a simple USB power connection, it is designed to be carried easily to various service locations. Operating on a low 5V DC supply with 2.5W consumption, it provides a practical instrument for analysing mainboard issues in telecommunication devices without the need for bulky, stationary equipment. Its defined working environment of 3°C to 45°C ensures stable performance in typical indoor service conditions.

Features and Construction

The instrument's design prioritises functionality and portability for the telecommunication maintenance field. Its construction centres on delivering a dedicated diagnostic tool for mobile phone mainboards, built to the specifications of a third-generation rapid diagnostic device.

Material and Build

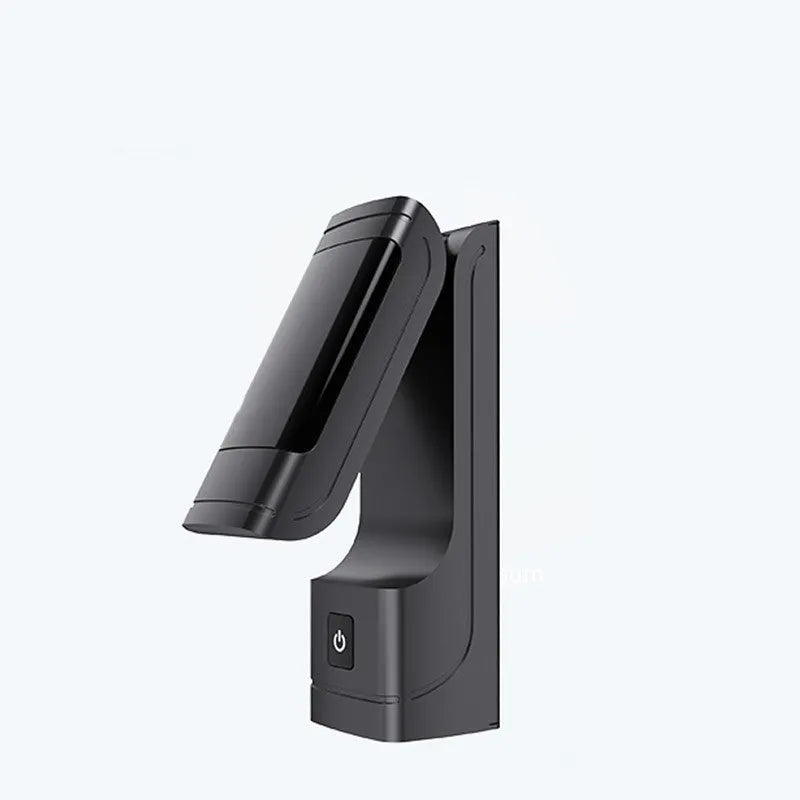

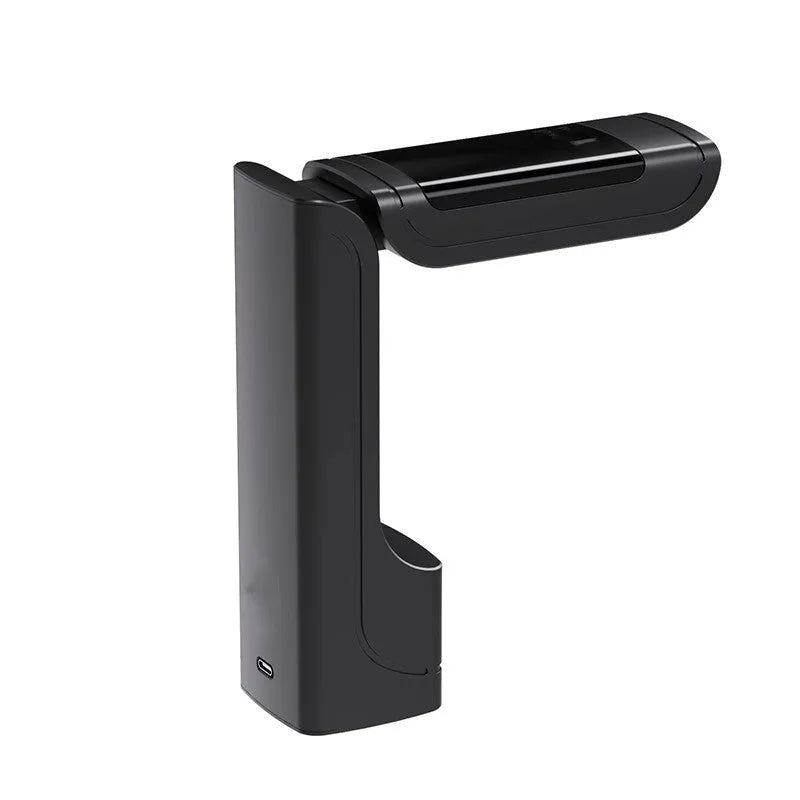

The device is presented in a black finish with a USB-style interface, indicating a focus on standard connectivity. The build is centred around housing the electronic components necessary for mainboard diagnostics within a robust casing suitable for professional use. The construction supports its primary function without unnecessary complexity, aligning with the needs of maintenance workflows.

Size and Practical Fit

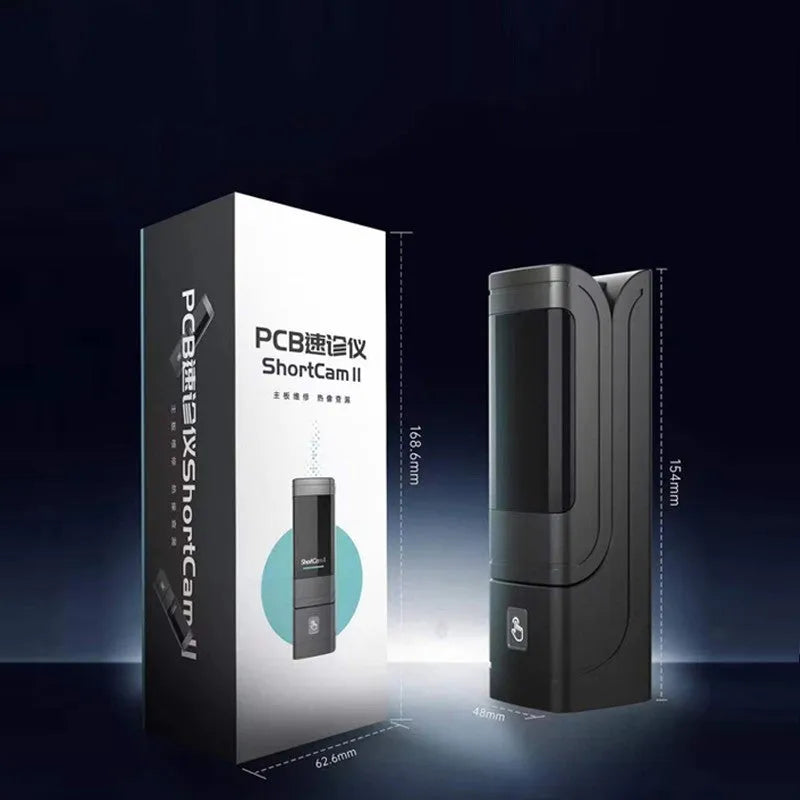

With measurements of 48mm in width and depth and 154mm in length, the instrument is notably compact. This size makes it highly portable, allowing technicians to store it conveniently in a toolkit or bag. The small footprint is a key practical advantage for professionals who move between different service calls or work in environments with limited bench space.

Uses and Placement

This tool has a defined role within the telecommunication service and repair sector. Its application is targeted, supporting specific diagnostic tasks for mobile phone hardware.

Event or Professional Use

The instrument is expressly suited for telecommunication maintenance scenarios. This includes use by repair technicians in workshops, service centres, or during on-site customer support visits. Its rapid diagnostic capability is intended to streamline the fault-finding process for mobile phone mainboards, helping to identify issues quickly as part of a professional service workflow.

Everyday Home Use

While designed for professional maintenance, the simple USB power operation and compact size could also make it accessible for advanced enthusiasts or small-scale repair operations. However, its primary design intent and application scope remain focused on telecommunication maintenance contexts as specified.

Benefits and Buying Value

The value of this diagnostic instrument lies in its specific functionality and practical design, offering a targeted tool for a professional need.

Reuse and Low Maintenance

The instrument is built for repeated use in a professional setting. Its robust storage temperature range of -20°C to 60°C suggests it can withstand the conditions of transport and storage between jobs without requiring specialised care. The low 2.5W power draw and standard USB connection contribute to straightforward operation with minimal setup or ongoing maintenance overhead.

Why Choose This Product

For telecommunication maintenance professionals, this tool provides a dedicated third-generation diagnostic solution focused on mobile phone mainboards. Its key differentiators are its compact 48mm x 48mm x 154mm portable design, USB-powered convenience, and specification for rapid diagnostics. It offers a concrete tool for a specific technical task, avoiding generic multi-testers in favour of a purpose-built instrument for the job.
