Tungsten Steel PCB Drill Bits: Small Diameter Precision Tools for Circuit Boards

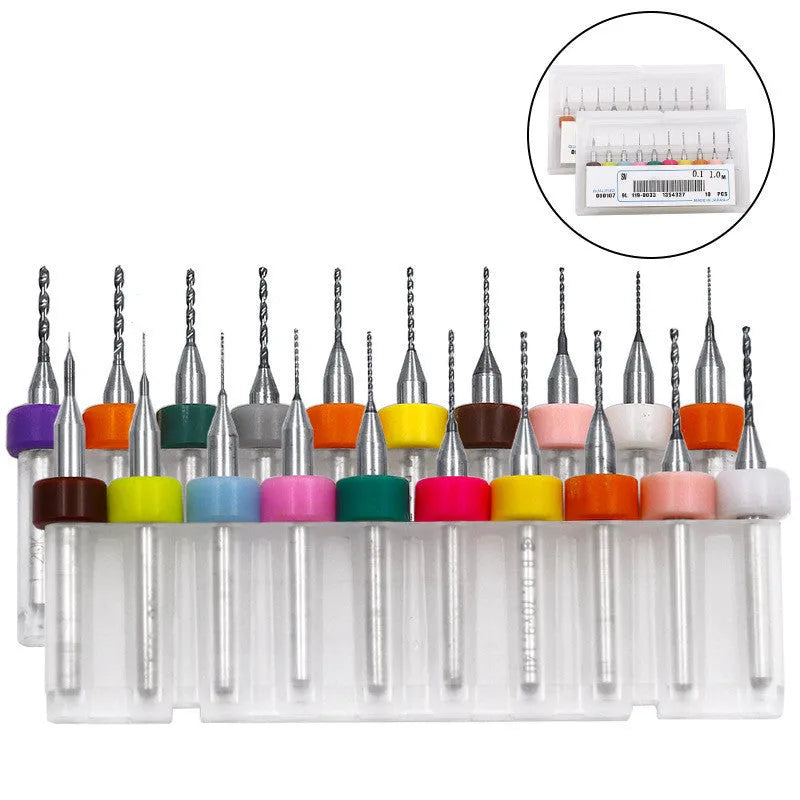

These fixed shank drill bits are built for precise, small-scale drilling tasks, specifically suited to working with circuit boards and other delicate electronic components. Made from tungsten steel, the drill bits offer a hard cutting surface for clean holes. Available in two distinct model ranges covering blade diameters from 0.1mm up to 1.2mm, they provide options for various hole sizes required in PCB fabrication and repair. With a compact total length of 36-38mm and a consistent 3.2mm shank diameter, they are designed to fit standard collets and offer control during operation.

Features and Construction

This product is defined by its precise specifications tailored for electronics work. The construction centres on material choice and dimensional accuracy to meet the demands of creating small, clean holes in laminated board materials.

Material and Build

The drill bit is constructed from tungsten steel, a material chosen for its hardness and ability to maintain a sharp cutting edge. It is a straight shank twist drill, a common design that provides effective chip removal and drilling stability. The shank is round and measures 3.2mm in diameter, which is a standard size for securing the bit in a drill chuck or precision tool holder.

Size and Practical Fit

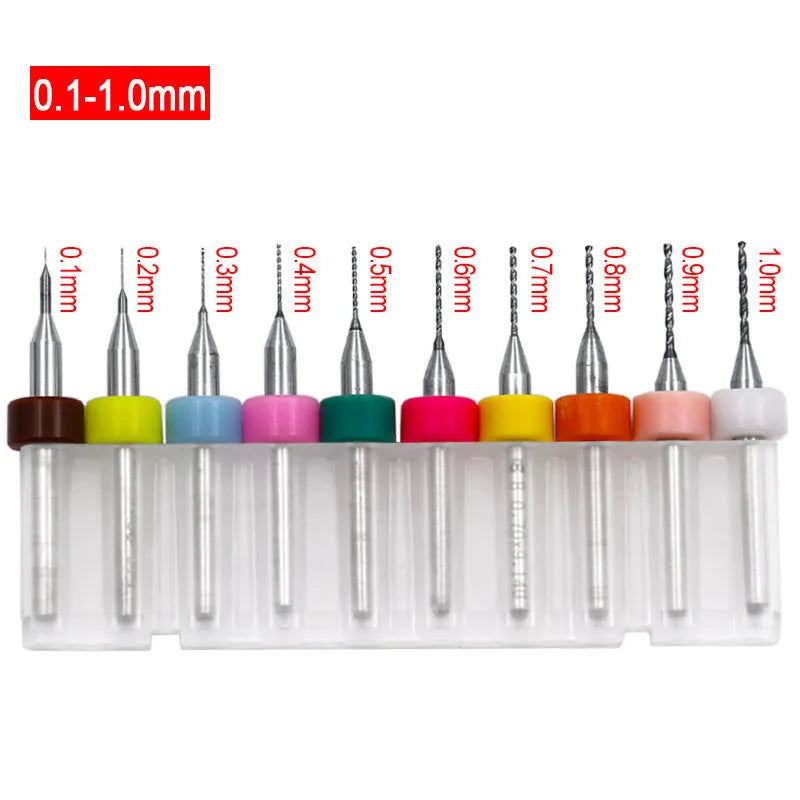

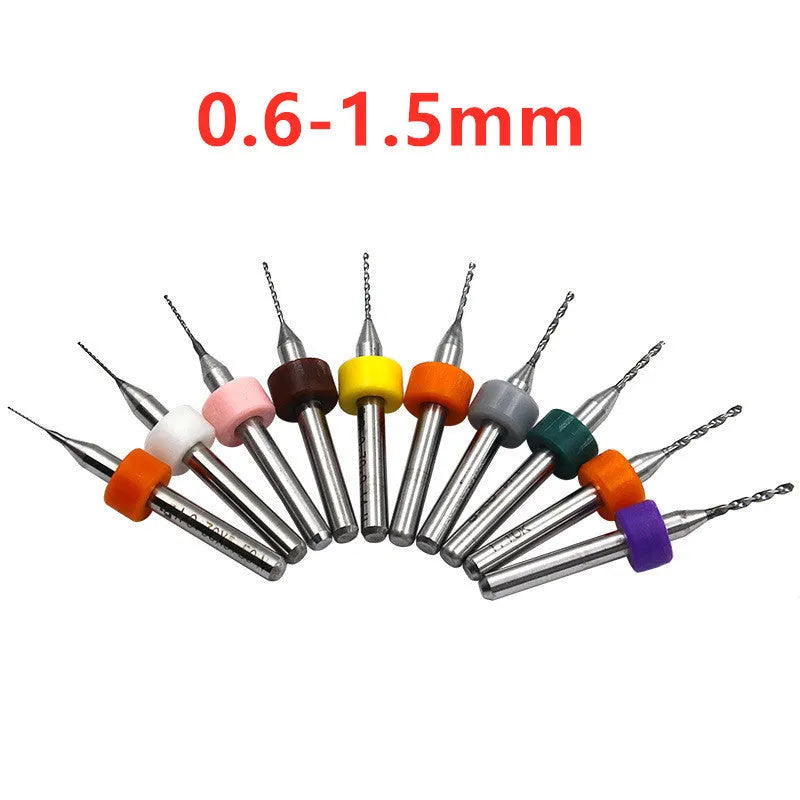

The overall size of the drill bit is compact, with a total length between 36mm and 38mm. The useful cutting length of the blade itself ranges from 1.5mm to 10.5mm, which is sufficient for drilling through standard PCB thicknesses. The two available model series offer different blade diameter ranges: one covers 0.1mm to 1.0mm, and the other covers 0.3mm to 1.2mm, allowing users to select the appropriate size for specific hole requirements.

Uses and Placement

These drill bits have a clear primary application but can also be used for other similar precision tasks. Their design parameters make them suitable for both professional and hobbyist environments where accuracy is paramount.

Event or Professional Use

The primary professional use is in electronics manufacturing, prototyping, and repair for drilling holes in printed circuit boards (PCBs). The small diameter range, particularly the 0.1mm option, is essential for creating via holes and mounting points for fine-pitch components. Technicians and engineers require bits that produce clean, burr-free holes to ensure proper component placement and solder flow, which this tungsten steel construction aims to provide.

Everyday Home Use

For hobbyists, model makers, or individuals engaged in detailed DIY electronics projects such as building Arduino shields or repairing small devices, these bits offer the necessary precision. The 10-piece pack means having spares on hand or a set of varying sizes within the selected range, which is practical for home workshops where different projects may require different drill sizes.

Benefits and Buying Value

The value of this product lies in its specific design for a niche task, the practicality of a multi-pack, and the material choice for the intended use.

Reuse and Low Maintenance

Being made of tungsten steel, the bits are designed for repeated use on appropriate materials. The pack of 10 provides immediate replacements, extending the overall usable life of the purchase. For tasks involving multiple identical holes or frequent drilling, having multiple bits reduces downtime from tool wear or breakage.

Why Choose This Product

This product is chosen for its exact specifications: the small, precise blade diameters, the hard tungsten steel material, and the 3.2mm shank compatible with many tools. It addresses the specific need for drilling very small holes in brittle, laminated materials like fibreglass PCBs. The packaging as a 10-piece set offers practical value for a task where bits can be consumed through normal use.
