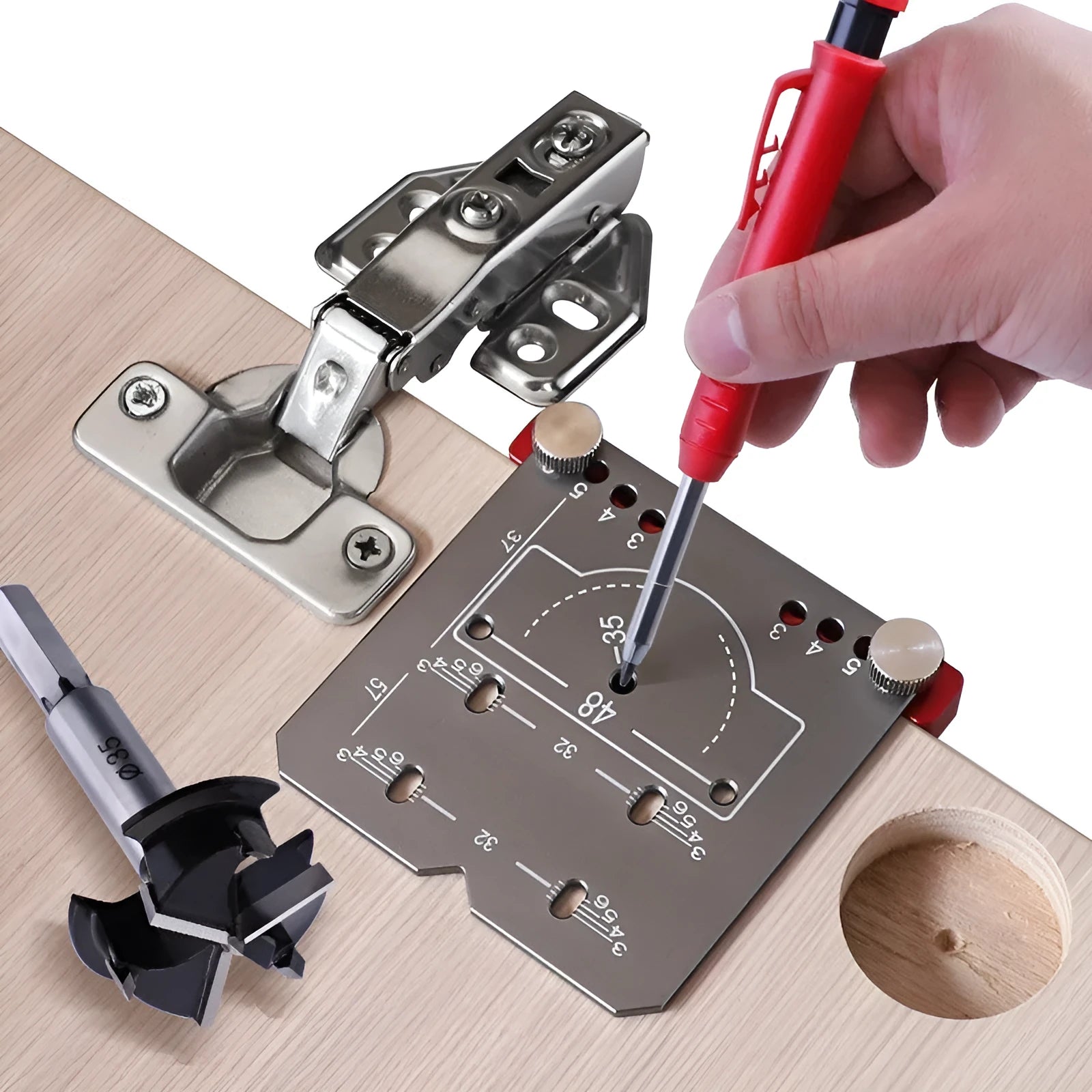

35mm hinge punch locator tool with adjustable 3-6mm margin settings for cabinet and wardrobe installation

This specialised woodworking tool addresses the common challenge of accurately positioning hinges during cabinet, wardrobe, and door installation projects. Designed specifically for 35mm extended arm and middle bend hinges, the locator eliminates guesswork by providing precise measurement points for hinge placement. The aluminium alloy construction offers a stable base that resists bending during use, while the adjustable margin settings accommodate various installation requirements commonly encountered in home woodworking projects. Whether you're fitting new kitchen cabinets, bedroom wardrobes, or interior doors, this tool streamlines the installation process with consistent, repeatable results.

Features and Construction

The hinge punch locator combines measurement accuracy with practical construction elements to support efficient woodworking tasks. Its design focuses on providing clear visual guides and physical support during the hinge installation process, reducing the likelihood of misaligned fittings that can compromise cabinet door operation.

Material and Build

Constructed from aluminium alloy, the main body of the locator tool offers a balance of lightweight handling and structural rigidity. This material choice prevents the tool from flexing during use, maintaining measurement accuracy across repeated applications. The included tapper features a hard alloy blade that has undergone high temperature heat treatment, resulting in enhanced hardness properties that support clean cutting action through various wood types without requiring excessive force from the user.

Size and Practical Fit

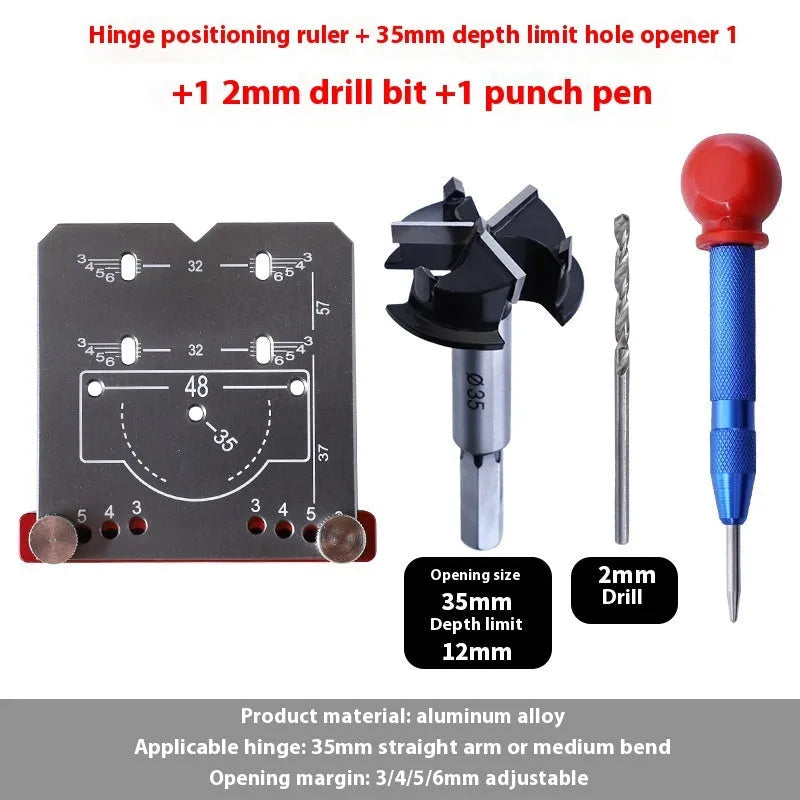

Specifically engineered for 35mm hinge installations, the tool accommodates both extended arm and middle bend hinge designs commonly found in modern cabinetry. The four adjustable margin settings (3mm, 4mm, 5mm, and 6mm) provide flexibility for different installation scenarios, whether you're fitting inset doors, overlay doors, or partial overlay designs. This range covers the most common margin requirements in household woodworking projects, eliminating the need for multiple specialist tools.

Uses and Placement

The tool's applications extend across various woodworking scenarios where hinge accuracy directly impacts the finished product's functionality and appearance. From kitchen renovations to built-in wardrobe installations, consistent hinge placement contributes to smooth door operation and professional-looking results.

Event or Professional Use

For professional installers or frequent DIY enthusiasts undertaking multiple projects, the tool provides time-saving advantages through its repeatable measurement system. The aluminium construction withstands regular use in workshop environments, while the heat-treated blade maintains its cutting efficiency across numerous installations. The adjustable margin settings allow professionals to adapt to different client specifications without requiring additional equipment, making it suitable for varied project requirements.

Everyday Home Use

Home woodworkers undertaking occasional cabinet installation or furniture building projects benefit from the tool's straightforward operation. The clear margin markings and included positioning ruler eliminate complex calculations, reducing the potential for measurement errors that could compromise finished projects. The tool's specific focus on 35mm hinges addresses the most common standard in home cabinetry, making it immediately applicable to most household woodworking tasks without requiring technical expertise.

Benefits and Buying Value

The practical advantages of this hinge locator extend beyond initial installation accuracy to include ongoing usability and maintenance considerations. Its design prioritises functionality that supports successful project outcomes while minimising the specialised knowledge typically required for precise hinge placement.

Reuse and Low Maintenance

The aluminium alloy construction requires minimal maintenance beyond occasional cleaning with a dry cloth to maintain measurement visibility. Unlike wooden jigs that can warp over time or plastic templates that may crack with repeated use, the metal construction maintains dimensional stability across multiple projects. The heat-treated hard alloy blade retains its cutting properties through numerous applications, supporting consistent performance without frequent replacement needs.

Why Choose This Product

This hinge punch locator offers a focused solution for a specific woodworking challenge: accurate 35mm hinge installation. Unlike general-purpose marking tools that require manual calculation of hinge positions, this specialised tool provides predetermined measurement points that reduce error potential. The inclusion of four margin settings addresses the most common installation variations without requiring additional accessories, while the aluminium construction ensures the tool remains serviceable across multiple projects. For household woodworking tasks involving cabinet, wardrobe, or door installation, this tool provides targeted functionality that supports professional-looking results.
